| INSTRUCTIONS |
| Purpose |
This worksheet serves two uses. First, it is used by the programmer/operator to label the controller's
12 fixture selectors and, second, to label the 6 chase selectors. Use the separate fixture and chase
schedules for additional details. The companion bank and scene schedules document preset scenes
and chases steps.
|
| Architecture |

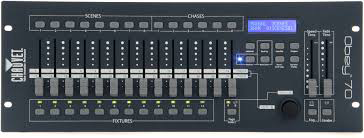

The Chauvet Obey 70 controls twelve 32 channel DMX fixtures and features six programmable chases.
Each chase can have up to 240 steps. Chase speed and fade time is controllable and chases can synch
to music as well. The controller features 30 scene banks and each scene bank has eight scenes.
|
| Printing |
For best results, set printer to only print page one unless you need copies of
these instructions. |
| Event |
This block can be used to describe the event. |
| Start Date |
This block can be used to indicate date when the controller and fixtures need to be ready. |
| End Date |
This block can be used to indicate date when the controller and fixtures will be available
for the next event.
|
| Universe |
DMX is divided into universes of 512 channels. Indicate which universe this controller
will manage.
|
| DMX Range |
Specifies the DMX range used on this universe. |
| Description |
Specify the fixture type and application. Additional information can be included such
as fixture marking or other details.
|
| Chase Description |
Specify the nature of the chase e.g. cool forward, warm reverse, yellow shimmy, etc.
Chase details are specified on the Chase Schedule.
|
