Chauvet Obey 10
Controller Schedule

obey 10
EVENT   Start Date   End Date

BUILD Universe   Dmx Range 1-129

Fixture DMX Description Qty Mark
1 1
2 17
3 33
4 49
5 65
6 81
7 97
8 113

Chase Description
1
2
3
4
5
6











logo  Stagecraft Production Service, 41 West Sixth Street, Franklin, Ohio 45005

INSTRUCTIONS
Purpose This worksheet serves two uses. First, it is used by the build shop to indicate how many of each fixture type to build, how they are configured, and how each should be marked. Second, it is used by the programmer/operator to label the controller and assist in developing chases.

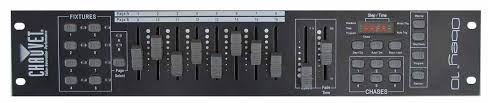

Architecture The Chauvet Obey 10 controls eight 16 channel DMX fixtures and features six 999 step configurable chases. Chase speed and fade time is controllable and chases can synch to music as well.
Printing For best results, set printer to only print page one unless you need copies of these instructions.
Event This block can be used to describe the event.
Start Date This block can be used to indicate date when fixtures need to be ready.
End Date This block can be used to indicate date when fixtures will be available for the next event.
Universe DMX is divided into universes of 512 channels. Indicate which universe this controller will manage.
DMX Range Specifies the DMX range used on this universe.
Description Specify the fixture type, mounting hardware, and use.
Qty How many fixtures to provide with these settings.
Mark Indicate how fixtures should be marked at build so the correct fixture is mounted at the appropriate location. Typically, we specify the Universe and starting address e.g. '1/17' or '2/1'
Chase Description Indicate what each of the six chases does e.g. warm forward chase, cool reverse chase, warm alternating chase etc.
